CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool
  • CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool
  • CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool
  • CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool
CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool

CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool

Herkunftsort China
Markenname Lanshuo
Zertifizierung CE
Modellnummer LCN-1500
Einzelheiten zum Produkt
Modell:
LCN-1500
Typ:
Induktionslöschmaschinenwerkzeug
Maximale Länge des Spannteils:
1250 mm
Maximale Länge der Löschteile:
1200 mm
Die Teile mit dem größten Durchmesser werden gehärtet:
600 mm
Die größten gesamten Löschteile:
150 kg
SpindelUmdrehungsgeschwindigkeit:
0-200 Umdrehungen
Bewegungsgeschwindigkeit der Werkstücke:
1-60 mm/s
Genauigkeit der mobilen Positionierung:
±0.1 Millimeter
Farbe:
Zusätzlich
Hervorheben:

Quenching CNC Quenching Machine

,

Roller Shaft Quenching Machine

,

Hardening CNC Quenching Machine

Zahlungs- und Versandbedingungen
Min Bestellmenge
1 Satz
Preis
USD 10000-11000 / set
Verpackung Informationen
Aus Sperrholz
Lieferzeit
7-15 Arbeitstage nach Einzahlung
Zahlungsbedingungen
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit
1000 Sätze pro Jahr
Beschreibung des Produkts

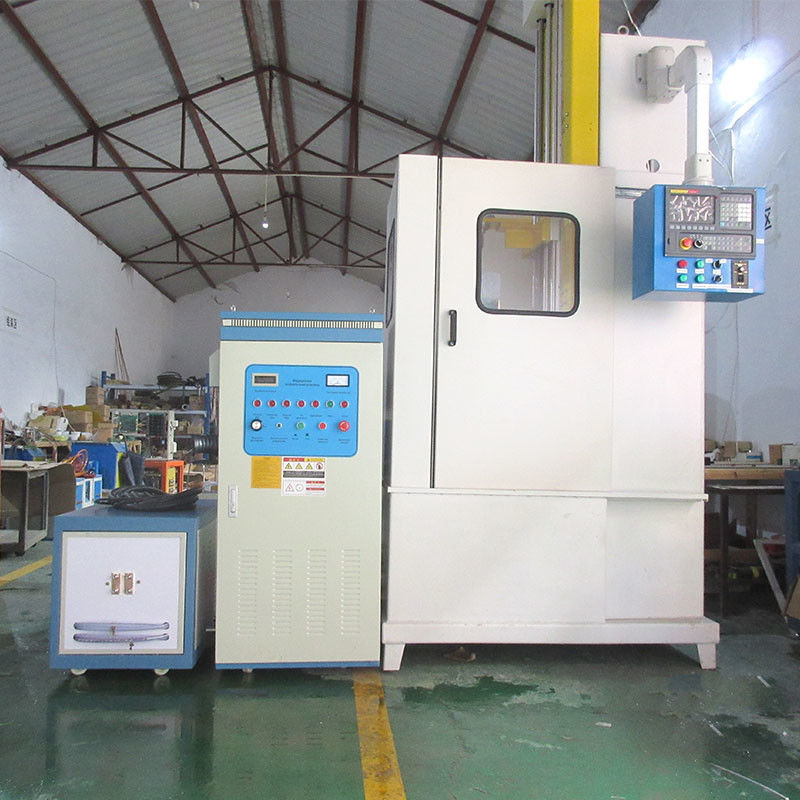

LCN-1500 CNC Induction Quenching Hardening Machine Tool



I. Main configuration of CNC Induction Quenching Machine Tool :
1. CNC system control;
2. Stepper motor drive;
3. Ball screw drive;
4. Cylinder linear guide rail, ball slider sliding;
5. AC variable speed motor drive sprocket chain, the light bar to rotate the workpiece;
6. AC gear motor drive screw, screw the top down;
7. Solenoid valve control water;
8. With a heating device control plug.


II. Main technical parameters of CNC induction quenching machine tools

Model
LCN-2000
LCN-1500
LCN-1000
LCN-600
Max lengths of the clamping parts (mm)
2050


1250
1050
650
Max length of quenching parts (mm)
2000
1200
1000
600
The largest diameter quenching parts (mm)
600
600
600
600
The largest total quenching parts (Kg)
150
150
150
150
Spindle rotation speed (rps)
0-200
0-200
0-200
0-200
Workpieces moving speed         (mm/s)
1-60
1-60
1-60
1-60
Mobile positioning accuracy (mm)
±0.1
±0.1
±0.1
±0.1



III. Advantages of Our CNC Hardening Machine Tool:
1. The machine adopts IGBT modules, high efficiency, energy saving.
2. Environmental. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.


IV. Applications of Our CNC Hardening Machine Tool:
Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool 0
CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool 1

CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool 2



V. Certificates

CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool 3

CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool 4

CNC Roller Shaft Quenching Machine Tool Hardening Machine Tool 5
