200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment
  • 200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment
  • 200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment
  • 200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment
  • 200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment
  • 200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment
200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment

Place of Origin CHINA
Markenname ZHENGZHOU LANSHUO
Zertifizierung CE
Model Number LSW-200
Einzelheiten zum Produkt
Working voltage:
380V/50-60HZ
voltage range:
340V-420V
Max input power:
200KW
DC voltage:
500V
DC current:
320A
Input power control switch:
3*400A
Enter the power cord:
120mm² Copper wire
Equipment ground wire:
1.5mm² Soft copper wire
The heating frequency:
1-8KHZ
Air switch:
3*450A
Consumption of water:
0.2MPa
Consumption of electricity:
130 degrees/hour
Zahlungs- und Versandbedingungen
Minimum Order Quantity
1 SET
Preis
8000USD-12000USD
Packaging Details
WOODEN CASE
Delivery Time
5-8WORKING DAYS
Payment Terms
T/T
Beschreibung des Produkts
Parameter Working voltage 380V/50-60HZ
voltage range 340V-420V
Max input power 200KW
DC voltage 500V
DC current 320A
Input power control switch 3*400A
Enter the power cord 120mm² Copper wire
Equipment ground wire 1.5mm² Soft copper wire
The heating frequency 1-8KHZ
Air switch 3*450A
Consumption of water 0.2MPa
Consumption of electricity 130 degrees/hour
Weight(after packing) 400KG
Dimension

1200*760*2050mm,

1060*680*860mm
Cooling water installation Control cabinet water interface quantity

Water inlet:one

Outlet:one
The number of auxiliary water outlets

Water inlet:one

Outlet:one
The pipe specifications

Incoming water pipe: internal diameter 50mm

Equipment outlet pipe: internal diameter 50mm





Name of accessories Model Quantity
IGBT modules FF450R12KT 4 pcs
Three-phase bridge MDS500-17 1 pcs
Potentiometer 3590SE-2 1 pcs
Relay RXM2AB2P7 1 pcs
Main board LSR-96-11 1 pcs
Driver board LSQD-8 1 pcs
Control panel LSMD-1 1 pcs
Control transformer CKQ-5 2 pcs
Filter plate LSYD-2 1 pcs
SCR drive board LSKK 1 set

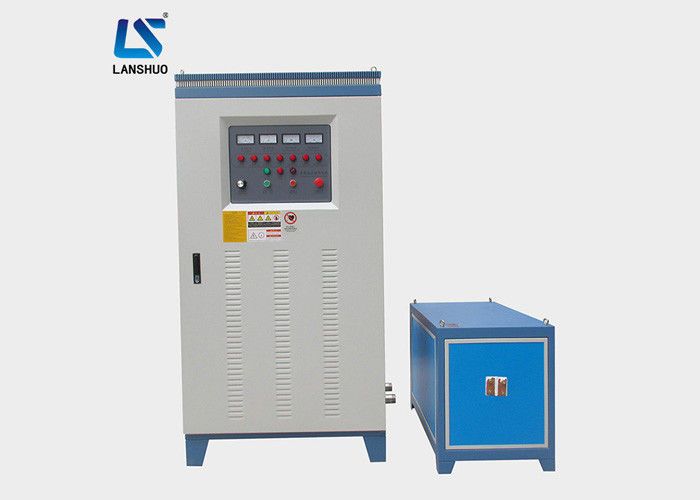

Pictures of LSW-200:



200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 0



200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 1



200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 2200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 3200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 4



200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 5200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 6



CE:



200KW Induction Heating Machine for Pipe/shafts Induction Hardening Heat Treatment 7
