Small Glass Melting Furnace Induction Melting Furnace

Herkunftsort	CHINA
Markenname	Lanshuo
Zertifizierung	CE
Modellnummer	LSW-30 Induktionsschmelzmaschine

Einzelheiten zum Produkt

Typ:

schmelzende Maschine der Induktion

Verwendung:

Erwärmung Schmelzschmelzschmelzschmelzschmelzen Schweißen

Schmelzkapazität:

1-5 kg Glas

Nennleistung:

30 kW

Stromspannung:

380V

Eingangsspannung:

Dreiphasen 380v 50/60 Hz

Kernelement:

IGBT-Module

Schwingungsfrequenz:

25 bis 40 Khz

Hervorheben:

small glass melting furnace

induction melting furnace for glass

compact induction furnace with warranty

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Set

Preis

USD 1500-2000 / set

Verpackung Informationen

Sperrholzfall

Lieferzeit

5-7 Werktage, nachdem Vorauszahlung empfangen worden ist

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

3000 Stück/Stück pro Jahr

Beschreibung des Produkts

1kg 2kg 3kg 5kg Glass Melting Furnace Industrial Furnace Crucible Furnace

Product Brief Introduction

Our high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

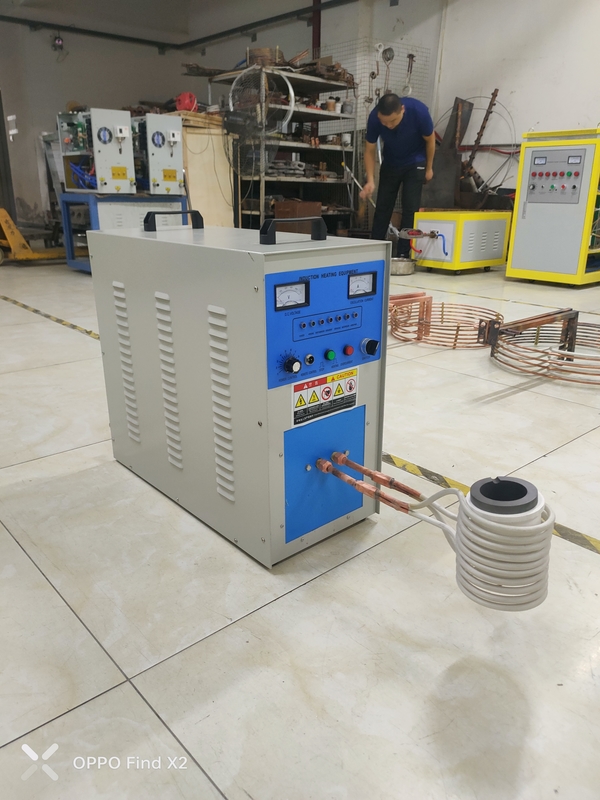

LSW-30 Portable Electric Stainless Steel Induction Melting Machine

Applications

Iron, pig iron, cast iron
glass, glass bottle
Steel, stainless steel, cast steel, carbon steel and bearing steel
Precious metals such as gold and silver
Copper, brass, bronze
Aluminum, aluminum alloy
Zinc, lead, tin, magnesium, nickel, titanium

Product Overview

The LSW series high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as its core. Designed to melt metal into liquid using high temperature, this machine is suitable for smelting various metals including iron, steel, copper, aluminum, zinc, and precious metals.

Technical Parameters

Model	LSW-30KW
Input Power	30KW
Input voltage	Three phase 380v 50hz
Voltage range	340V~420V
Oscillation frequency	25-35Khz
Current(max)	52A
Continuous load rate	100%
Cooling water flow(controller)	25L/Min 0.1mpa
Weight	48kg
Dimension	265600540mm

Key Features

High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
Low cost: The heating time is short, significantly reducing metal loss compared to other heating methods.
Easy installation: Following the user manual, even non-professional persons can install the machine easily.
Stable operation: Complete protection system ensures worry-free operation.
Environmentally friendly: Uses electricity, producing minimal waste gas and water.
